MODEL; TP-ESP-10G-POE

The TP-ESP-10G-POE from Tycon Systems® delivers exceptional high-performance Ethernet surge protection, effectively shielding sensitive equipment from surges caused by lightning and grid power fluctuations. This surge protector provides robust protection up to an impressive 10KA and supports Ethernet networks running at speeds of up to 10Gbps. Designed to meet IEEE802.3af/at/bt PoE standards, the TP-ESP-10G-POE ensures seamless integration across various systems, making it a versatile and reliable choice for different applications.

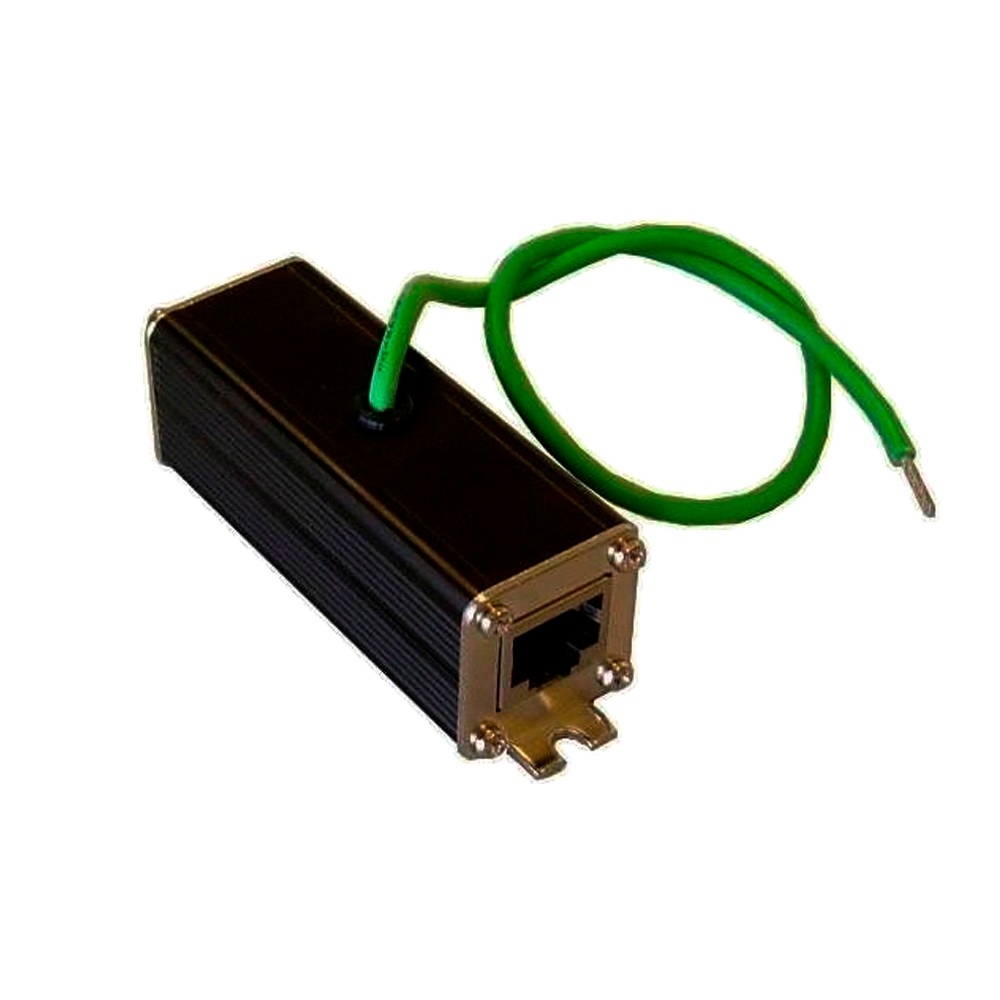

Built for durability, the TP-ESP-10G-POE features a full metal body that enhances EMI suppression, integral mounting feet, and a separate ground wire. This rugged design makes it perfect for both indoor and outdoor use when housed in a weatherproof enclosure. Furthermore, it is compatible with 10/100/1000M/10,000M PoE systems up to 58V, and it works effectively in pure data systems without PoE. Additionally, the surge protector delivers both Common Mode and Differential Mode Protection on all 8 Ethernet wires, ensuring comprehensive safeguarding of your network infrastructure.

The included ground wire connects easily to the user’s earth ground system, ensuring maximum effectiveness in protecting connected equipment. For optimal performance, it is advisable to mount the surge protector as close as possible to the protected equipment. To enhance versatility, Tycon Systems® offers a compact outdoor enclosure for weatherproofing and a DIN rail mounting kit for easy installation, making the TP-ESP-10G-POE a flexible solution for various environments.

Features

• Surge Protector
• 10/100/1000/10000Mb (10G) Data Rate
• CAT5, CAT5e, CAT6, CAT6a Compatible.
• 802.3af, 802.3at, 802.3bt and Passive PoE Compatible
• PoE, PoE+ and PoE++ Compatible
• Shielded RJ45 Jacks and Full Metal Housing
• Industrial strength operating range to 90C
• Over-Current Protected
• Complies with IEC 61000-4-5 Standard
• UL497B Listed

Applications

• Wireless Access Points and Client Devices
• IP Phone and Security Camera Systems
• Industrial Control Systems
